Effect of solder volume
- 30 / 08 / 2023
The shape of a solder meniscus depends on the pad dimensions, stencil, surface tension of solder and gravity. The stencil defines the solder volume.

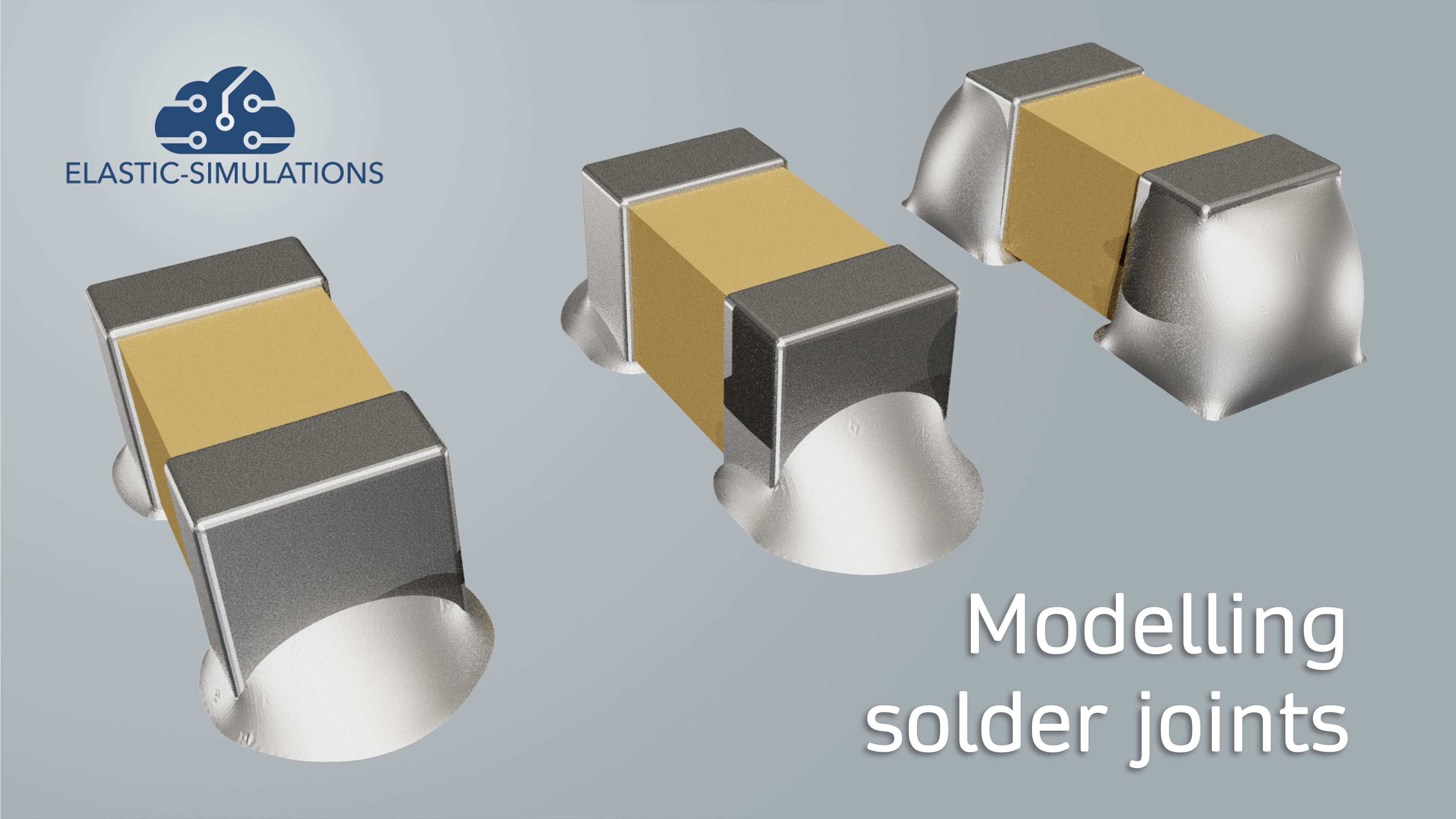

The picture shows the effect of the solder volume on the shape of the solder meniscus for a multi layer ceramic capacitor.
Picture: Solder meniscus shape depends on the solder volume.
