Tin-lead solder
- 23 / 02 / 2024
The shape of a solder meniscus depends on the pad dimensions, stencil, solder parameters and gravity. The stencil defines the solder volume.

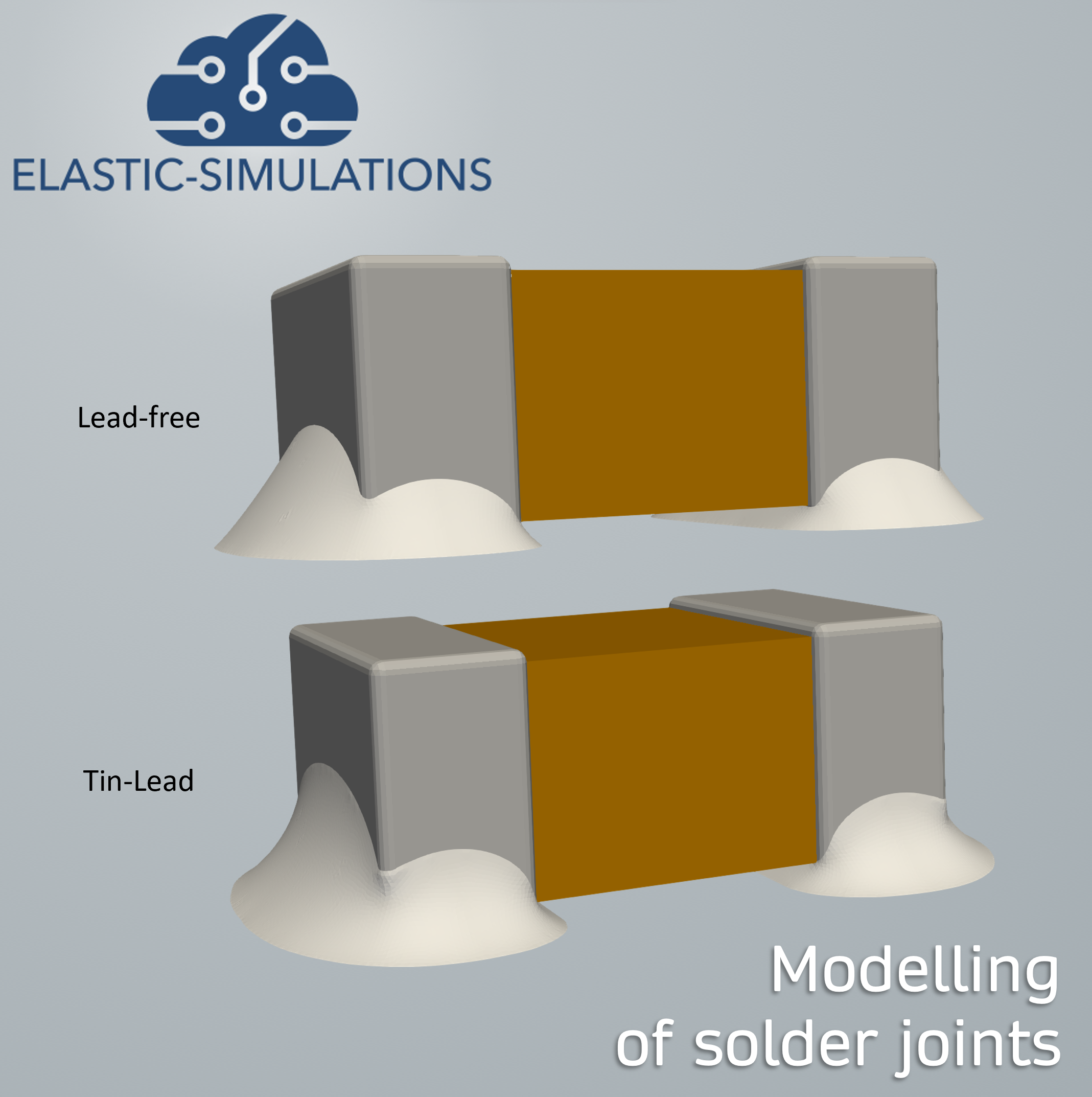

The picture shows the effect of solder type (lead-free and tin-lead solder) on the shape of the solder meniscus for a multi layer ceramic capacitor.
Picture: Solder meniscus shape for lead-free and tin-lead solder.
