Modelling of complex PCBAs
- 05 / 08 / 2023
Building finite element models of PCBAs can be a challanging task.
With our machine learning based homogenization method for PCBs and with sub-structuring of solder joints we can model also complex PCBA designs efficiently.

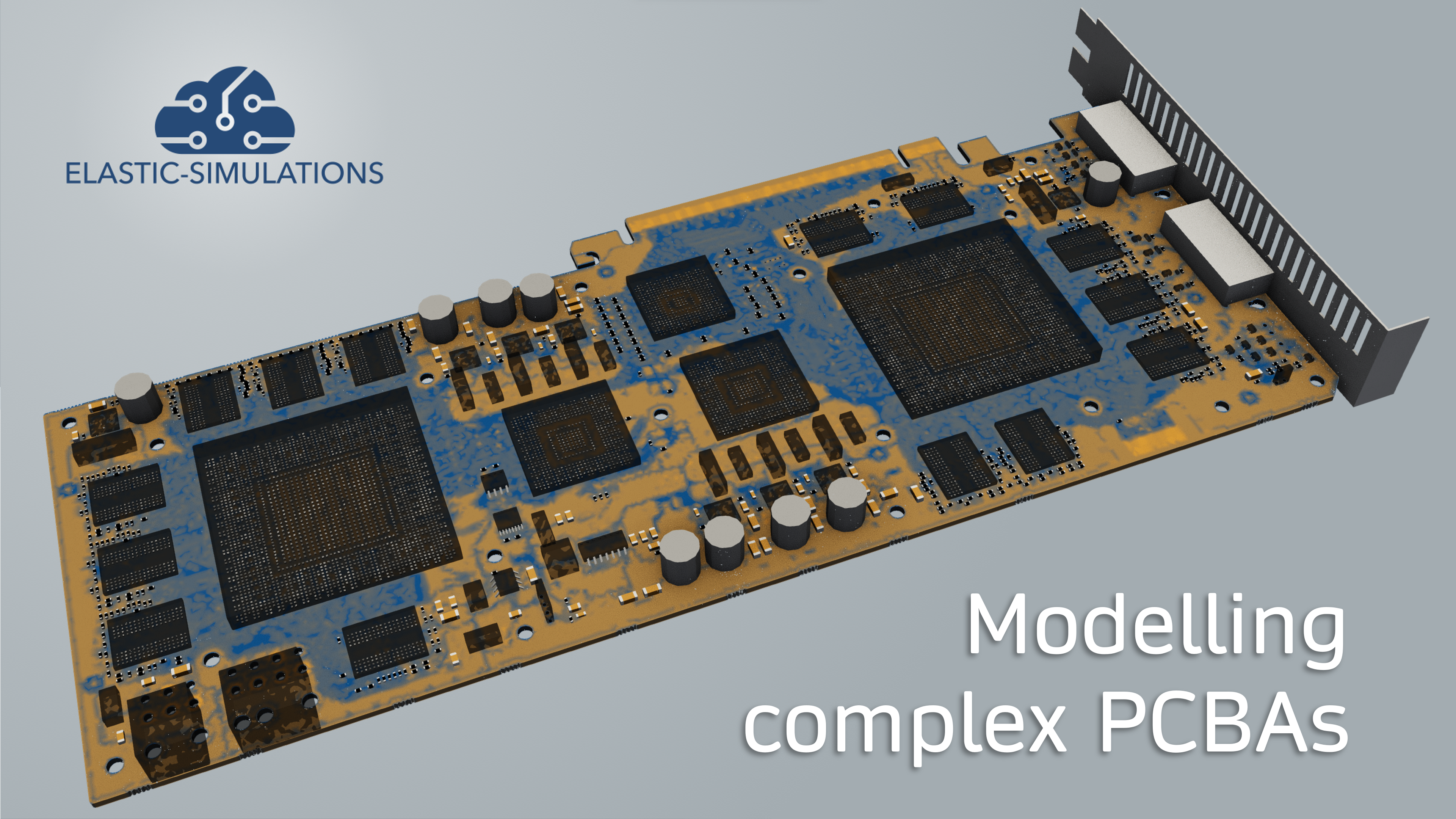

The picture shows a finite element model of the IPC2581 test case 2 (a graphics card) consisting of approximately 14000 solder-joint sub-structures calculated from detailed solder-joint models.
Picture: Finite element model of a complex PCBA design.
